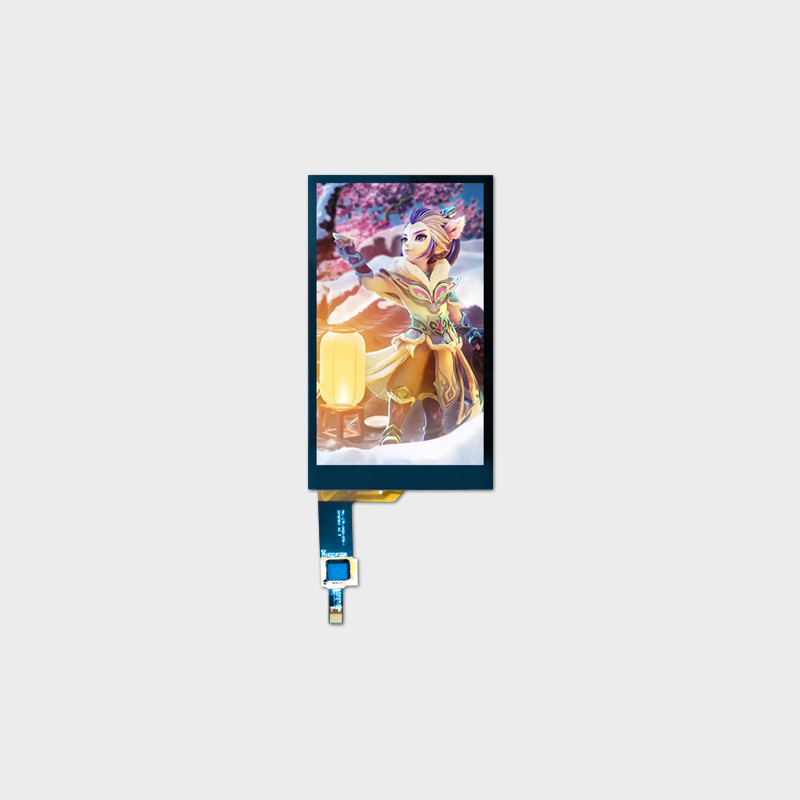

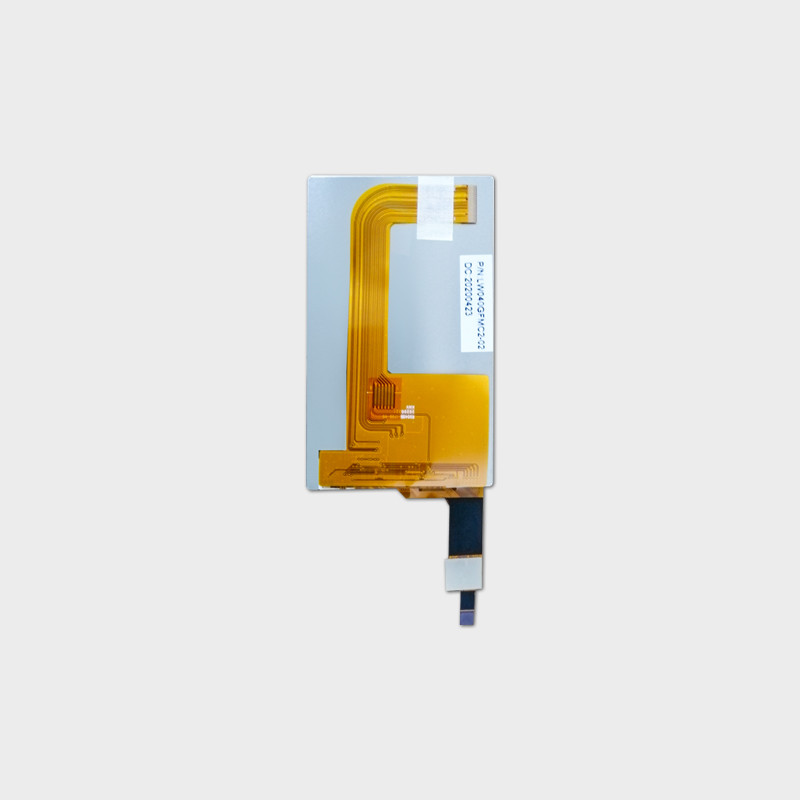

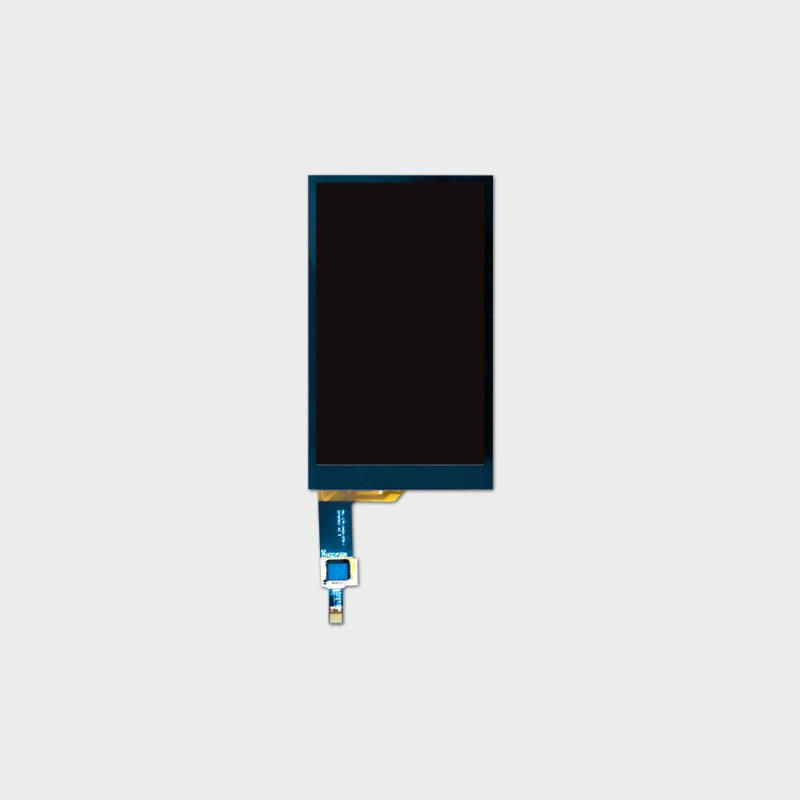

4.0 Inch Small LCD Display Screen 480*800 MIPI 200 Nits Display

Place of Origin Shenzhen
Brand Name ROGIN
Model Number RX040B-1700
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Small LCD Display Screen Panel Size 4.0"
Resolution 480(RGB)*800 Brightness 200 (Typ.)
Active Area 51.84*86.4mm Outline Dimension 57.14*97.05*2.25mm
Highlight

4.0 Inch Small LCD Display Screen

,

Small LCD Display Screen 480*800

,

MIPI 200 Nits Display
Leave a Message
Product Description

4.0 inch Medium and Small LCD Display 480(RGB)*800 MIPI 200nits

Product Advantage ?

1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.

Product Application ?

1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.

4.0 Inch Small LCD Display Screen 480*800 MIPI 200 Nits Display 0 4.0 Inch Small LCD Display Screen 480*800 MIPI 200 Nits Display 1 4.0 Inch Small LCD Display Screen 480*800 MIPI 200 Nits Display 2 4.0 Inch Small LCD Display Screen 480*800 MIPI 200 Nits Display 3

Specifications ?

RX040B-1700

 Brand  Rogin
 Series  Medium and Small Size LCD Display
 Panel Size  4.0inch
 Model  RX040B-1700
 Brightness  200 cd/m2
 Resolution  480(RGB) *800 dots
 Interface  MIPI
 Display area(AA)  51.84*86.4mm
 Overall size  57.14*97.05*2.25mm
 Driver element  a-Si TFT active matrix
 Display colors  262K colors
 Pixel arrangement  RGB vertical stripe
 Pixel pitch  0. 108(H) *0.108(V)
 Viewing angle  ALL
 Drive IC  /
 Display mode  Transmissive/ Normally Black
 Operating temperature  -20~+70℃
 Storage temperature  -30~+80 ℃
