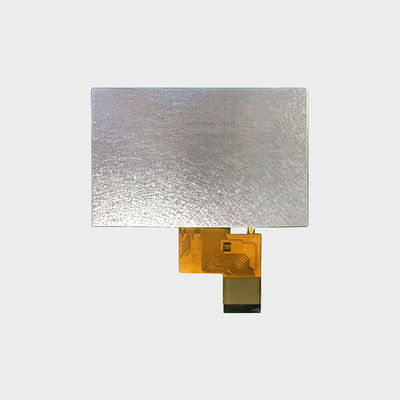

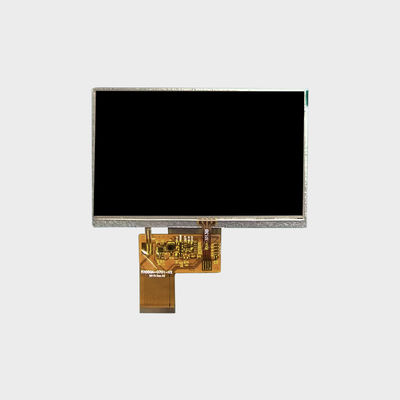

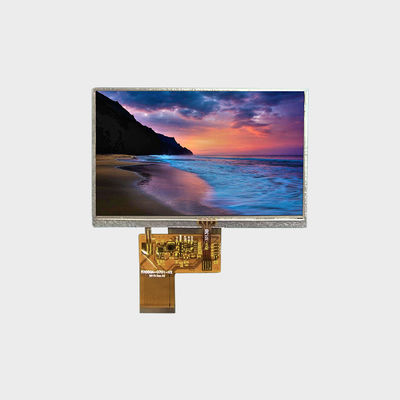

Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices

Place of Origin Shenzhen
Brand Name ROGIN
Model Number RX050A-0701
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name RGB LCD Display Panel Size 5.0"
Resolution 800(RGB)*480 Brightness 600 (Typ.)
Active Area 108(W) X64.8 (H) Mm Outline Dimension 120.7(W) X75.8(H) X3.1(D)mm
Highlight

Small RGB LCD Display

,

RGB LCD Display 5.0 Inch

,

RGB LCD Display 800×480
Leave a Message
Product Description

5.0 inch Medium and Small LCD Display 800(RGB)×480 RGB 600nits

Product Advantage ?

1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.

Product Application ?

1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.

Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices 0 Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices 1 Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices 2 Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices 3

Specifications ?

RX050A-0701

 Brand  Rogin
 Series  Medium and Small Size LCD Display
 Panel Size  5.0inch
 Model  RX050A-0701
 Brightness  600 cd/m2
 Resolution  800(RGB)*480 dots
 Interface  RGB
 Display area(AA)  108(W) x64.8 (H) mm
 Overall size  120.7(W) x75.8(H) x3.1(D)mm
 Driver element  a-Si TFT active matrix
 Display colors  16.7M colors
 Pixel arrangement  RGB-stripe
 Pixel pitch  0.135(W) ×0.135(H) mm
 Viewing angle  6 O'CLOCK
 Drive IC  ILI6122 + ILI5960
 Display mode  Transmissive/ Normally White
 Operating temperature  -20~+70℃
 Storage temperature  -30~+80 ℃
