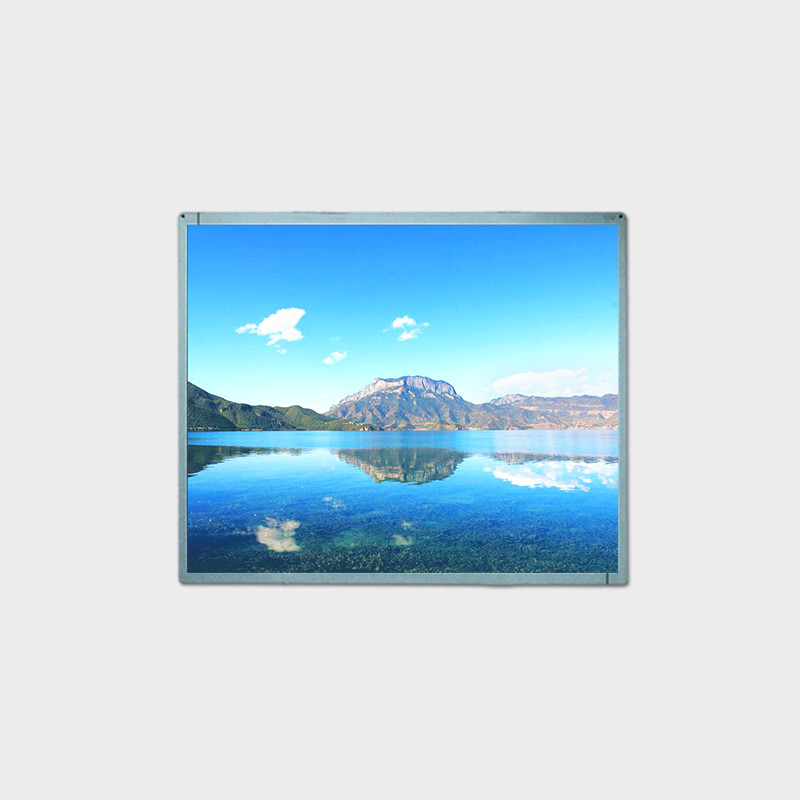

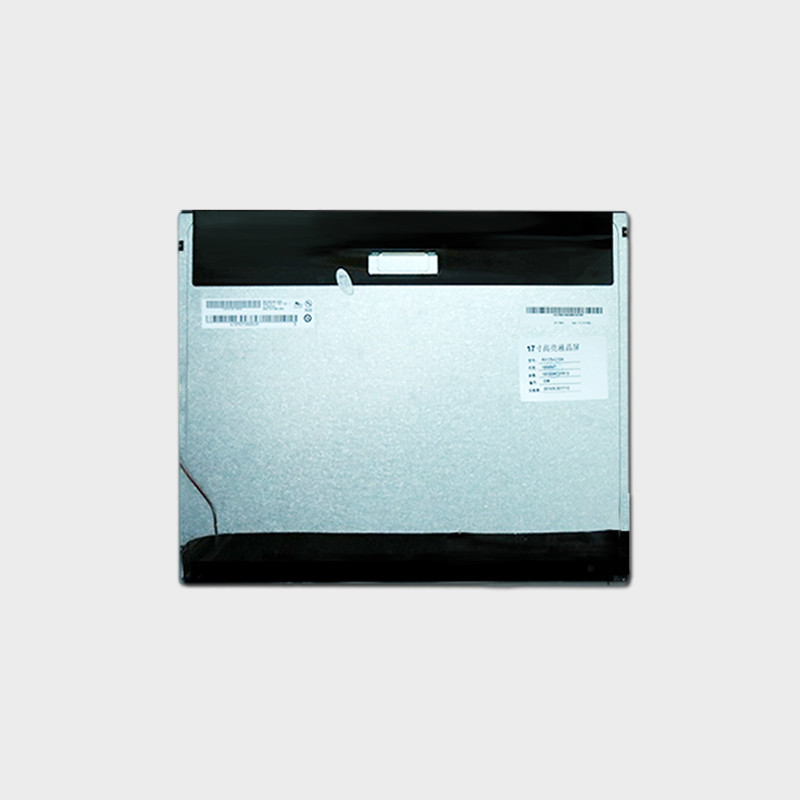

17 Inch High Brightness LCD Display1280*1024 LVDS 1000Nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0170GA02-C100
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 17" Resolution 1280*1024
Brightness 1000 (Typ.) Operating Temperature 0~50℃
Active Area 337.92*270.336 (A.A) Outline Dimension 358.5*296.5*10.3mm
Name High Brightness LCD Display
Highlight

LVDS High Brightness LCD Display

,

1000Nits High Brightness LCD Display

,

17 Inch High Brightness LCD Display
Leave a Message
Product Description

21.5 inch High Brirghtness LCD Display 1920*1080 LVDS 1500nits

Product Advantage ?

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7.Wide temperature range up to -30°C-80°C.
8.High shock resistance and high stability.

Product Application ?

1.Bus Station Signage Board.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.
17 Inch High Brightness LCD Display1280*1024 LVDS 1000Nits 0 17 Inch High Brightness LCD Display1280*1024 LVDS 1000Nits 1 17 Inch High Brightness LCD Display1280*1024 LVDS 1000Nits 2 17 Inch High Brightness LCD Display1280*1024 LVDS 1000Nits 3

Specifications ?

LCMA-RX0170GA02-C100

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size
   17 inch
  Model
  LCMA-RX0170GA02-C100
  Brightness
   1000
  Resolution
   1920*1080
  Active Area
   337.92*270.336mm
  Overall Size
   358.5*296.5*10.3 mm
  Viewing Angle
   85/85/80/80
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Touch Panel   Without
  Operating Temperature
   0~50℃
