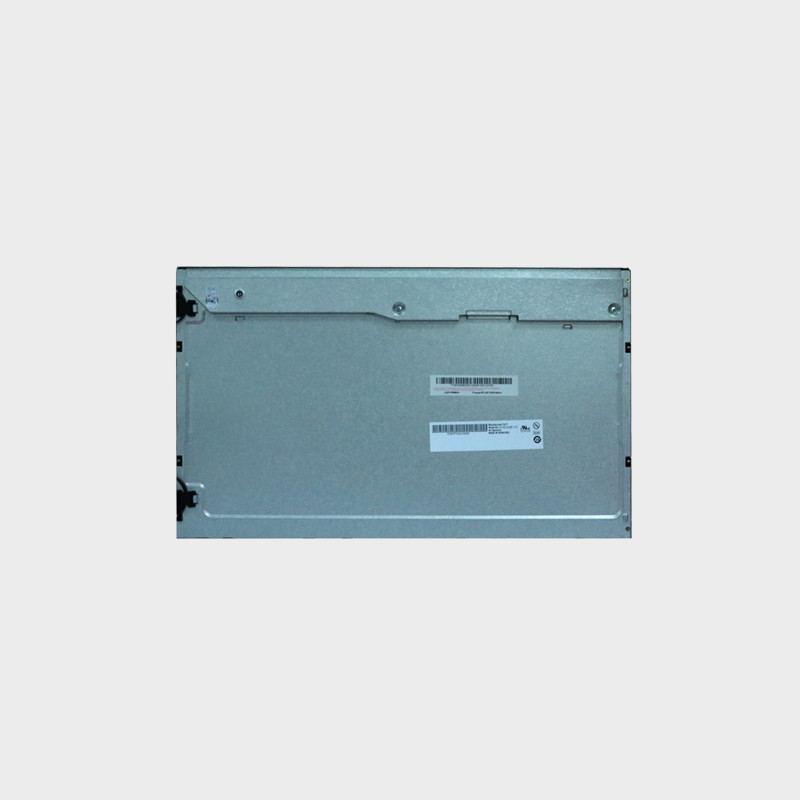

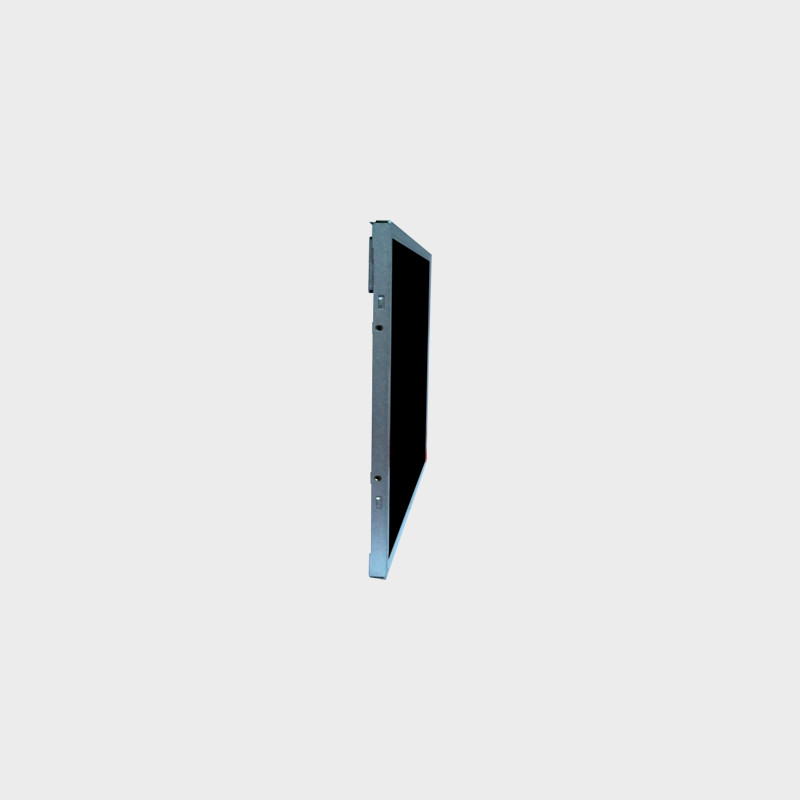

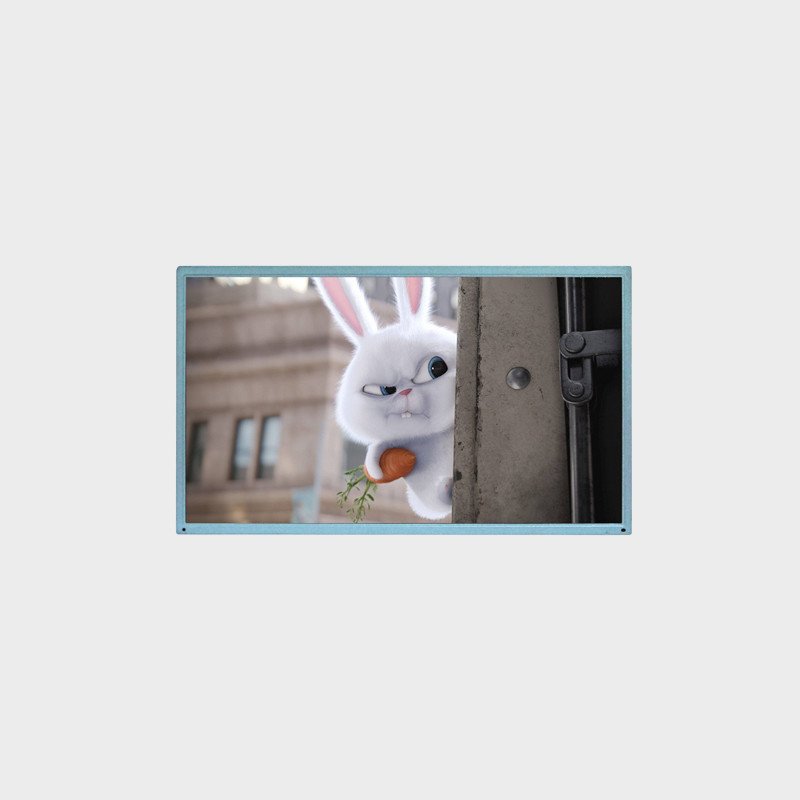

15.6 Inch LCD display 500nits 1920X1080, 0-60℃ LVDS

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0156GI06-C050
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 15.6" Resolution 1920X1080
Brightness 500 (Typ.) Aspect Ratio 16:9
Active Area 344.16*193.59 Outline Dimension 350.66*205.78*2.89mm
Highlight

1920X1080 LCD display

,

500nits LCD display

,

15.6 Inch LCD display
Leave a Message
Product Description

15.6 inch High Brirghtness LCD Display 1920*1080 LVDS 500nits

Product Advantage ?

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4. High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6. Aluminium backlight structure with good heat dissipation.
7. Wide temperature range up to -30°C-80°C.
8. High shock resistance and high stability.

Product Application ?

1. Bus Station Signage Board.
2. Intelligent Charging Pile.
3. Outdoor Electronic News Reading Board.
4. Intelligent Express Cabinet.
5. Vending Machine.
6. Commercial Advertising Machine.
7. Attractions Information Inquiry Machine.
8. Community Information Board.
15.6 Inch LCD display 500nits 1920X1080, 0-60℃ LVDS 0 15.6 Inch LCD display 500nits 1920X1080, 0-60℃ LVDS 1 15.6 Inch LCD display 500nits 1920X1080, 0-60℃ LVDS 2 15.6 Inch LCD display 500nits 1920X1080, 0-60℃ LVDS 3

Specifications ?

LCMA-RX0156GI06-C050

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
   15.6
  Model
   LCMA-RX0156GI06-C050
  Brightness
   500


  Resolution
  1920X1080
  Active Area
   344.16*193.59
  Overall Size
   350.66*205.78*2.89
  Viewing Angle
   85/85/85/85
  Interface Definition
   LVDS
  Backlight Type   WLED
  Contrast Ratio
   1500:1
  Aspect Ratio
   16:9
  Touch Panel   Without
  Operating Temperature
   0~60℃



? Product catalog of high brightness LCD display.pdf...
