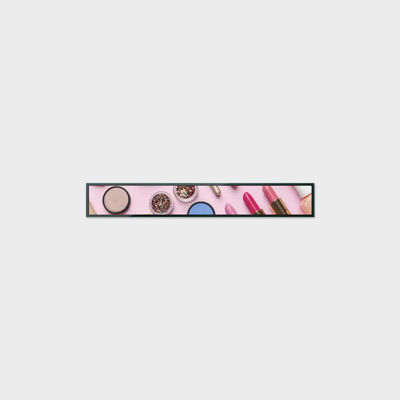

56.6 inch Bar Type LCD Display 3840*470 V-by-One 700nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0566TL02-C070
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 56.6" Resolution 3840*470
Brightness 700 (Typ.) Operating Temp. 0~50℃
Active Area 1428.48*174.84mm Outline Dimension 1470.5*222*26.5mm
Name Bar Type LCD Display
Highlight

3840*470 Bar Type LCD Display

,

56.6 inch Bar Type LCD Display

,

700nits Bar Type LCD Display
Leave a Message
Product Description

56.6 inch Bar Type LCD Display 3840*470 V-by-One 700nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

56.6 inch Bar Type LCD Display 3840*470 V-by-One 700nits 0 56.6 inch Bar Type LCD Display 3840*470 V-by-One 700nits 1 56.6 inch Bar Type LCD Display 3840*470 V-by-One 700nits 2 56.6 inch Bar Type LCD Display 3840*470 V-by-One 700nits 3

Specifications ?

LCMA-RX0566TL02-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   56.6 inch
  Model
  LCMA-RX0566TL02-C070
  Brightness
   700
  Power Consumption
   27W
  Resolution
   3840*470
  Active Area
   1428.48*174.84mm
  Overall Size
   1470.5*222*26.5mm
  Viewing Angle
   /
  Interface Definition
   V-by-One 8 lane
  Backlight Type   WLED
  Contrast Ratio
   1300:1
  Aspect Ratio
   16:1.97
  Touch Panel   Without
  Operating Temperature
   0~50 ℃



? Product catalog of bar type LCD display.pdf
