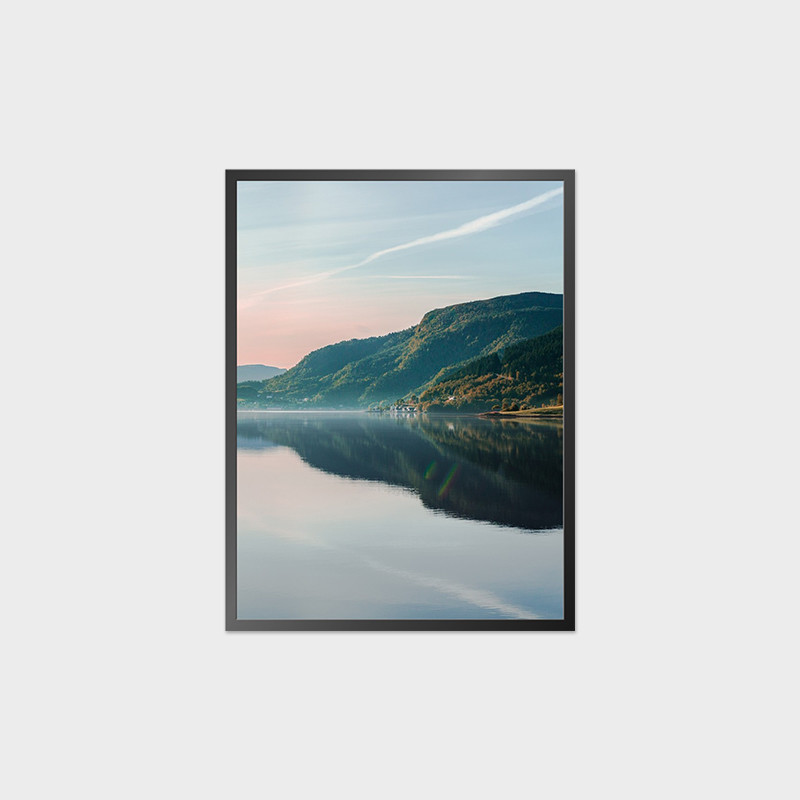

21.6 Inch Square LCD Display LVDS 1798*1338 400nits LCD Display Module

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0216TL02-C040
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Square LCD Display Panel Size 21.6"
Resolution 1798*1338 Brightness 400 (Typ.)
Operating Temp. 0~50℃ Active Area 328*441mm
Outline Dimension 351.97*465*14mm
Highlight

21.6 Inch Square LCD Display

,

Square LVDS LCD Panel

,

400nits LCD Display Module
Leave a Message
Product Description

21.6 inch Square LCD Display 1798*1338 LVDS 400nits LCD Module

Product Advantage ?

1. High definition image quality, unique design.
2. Multiple playback modes, supporting USB / internet playback and signal playback.
3. Remote publishing through cloud management, timely and convenient.

Product Application ?

1. Home decoration.
2. Shopping malls/Supermarket.
3. Specialty stores of Clothing, jewelry, cosmetics.
4. Exhibition Hall.

21.6 Inch Square LCD Display LVDS 1798*1338 400nits LCD Display Module 0 21.6 Inch Square LCD Display LVDS 1798*1338 400nits LCD Display Module 1 21.6 Inch Square LCD Display LVDS 1798*1338 400nits LCD Display Module 2 21.6 Inch Square LCD Display LVDS 1798*1338 400nits LCD Display Module 3

Specifications ?

LCMA-RX0216TL02-C040

  Brand   Rogin
  Series   Square LCD Display
  Panel Size
   21.6 inch
  Model
   LCMA-RX0216TL02-C040
  Brightness
   400
  Power Consumption
   10W
  Resolution
   1798*1338
  Active Area
   328*441mm
  Overall Size
   351.97*465*14mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1300:1
  Aspect Ratio
   7.49:5.57
  Touch Panel   Without
  Operating Temperature
   0~50 ℃
