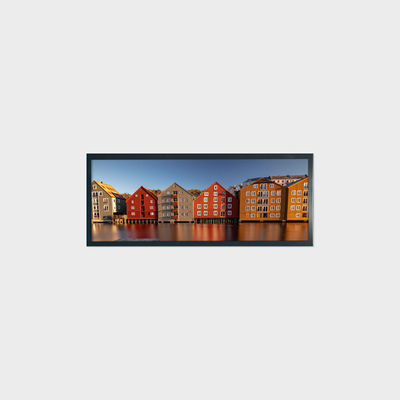

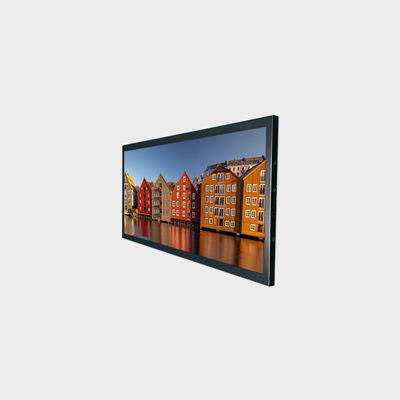

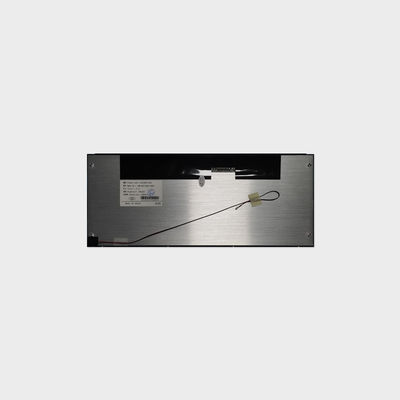

17.2 inch Bar Type LCD Display 1366*510 LVDS 500nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0172TB01-C050
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 17.2" Resolution 1366*510
Brightness 500 (Typ.) Operating Temp. 0~50℃
Active Area 409.8*153mm Outline Dimension 430.4*178.4*12mm
Name Bar Type LCD Display
Highlight

1366*510 Bar Type LCD Display
Leave a Message
Product Description

17.2 inch Bar Type LCD Display 1366*510 LVDS 500nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

17.2 inch Bar Type LCD Display 1366*510 LVDS 500nits 0 17.2 inch Bar Type LCD Display 1366*510 LVDS 500nits 1 17.2 inch Bar Type LCD Display 1366*510 LVDS 500nits 2 17.2 inch Bar Type LCD Display 1366*510 LVDS 500nits 3

Specifications ?

LCMA-RX0172TB01-C050

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   17.2 inch
  Model
   LCMA-RX0172TB01-C050
  Brightness
   500
  Power Consumption
   5.6W
  Resolution
   1366*510
  Active Area
   409.8*153mm
  Overall Size
   430.4*178.4*12 mm
  Viewing Angle
   /
  Interface Definition
   LVDS (1 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:6
  Touch Panel   Without
  Operating Temperature
   0~50 ℃



? Product catalog of bar type LCD display.pdf
