1920*860 Bar Type LCD Display 12 Inch LVDS 700nits Brightness For Commercial Signage

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0120GA01-C070
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 12" Resolution 1920*860
Brightness 700 (Typ.) Aspect Ratio 21:9
Active Area 278.2*124.63mm (A.A) Outline Dimension 291.7*144.9*12.6mm
Name Bar Type LCD Display
Highlight

1920*860 Bar Type LCD Display

,

Bar Type LCD Display 12 Inch

,

Commercial Signage 12 Inch LCD Display
Leave a Message
Product Description

12 inch Bar Type LCD Display 1920*860 LVDS 700nits

Product Advantage ?

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ?

1. Commercial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

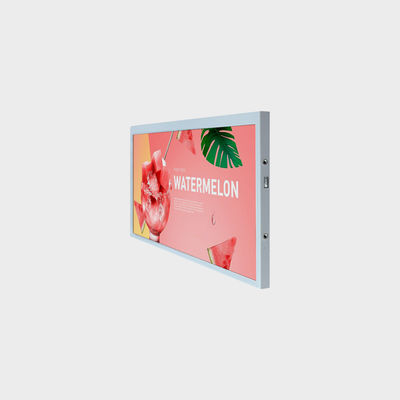

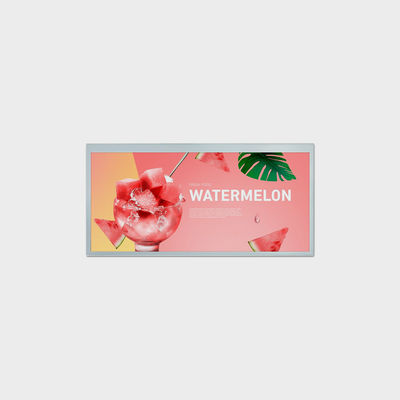

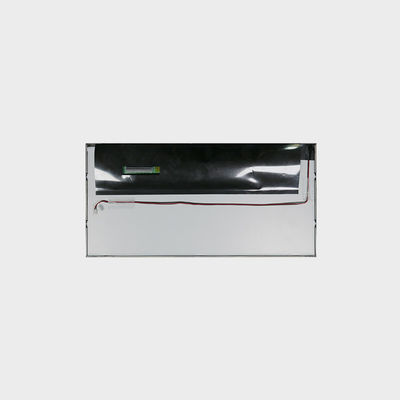

1920*860 Bar Type LCD Display 12 Inch LVDS 700nits Brightness For Commercial Signage 0 1920*860 Bar Type LCD Display 12 Inch LVDS 700nits Brightness For Commercial Signage 1 1920*860 Bar Type LCD Display 12 Inch LVDS 700nits Brightness For Commercial Signage 2 1920*860 Bar Type LCD Display 12 Inch LVDS 700nits Brightness For Commercial Signage 3

Specifications ?

LCMA-RX0120GA01-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size(inch)
   12
  Model
   LCMA-RX0120GA01-C070
  Brightness
   700
  Power Consumption (W)
   8
  Resolution
   1920*860
  Active Area
   278.2*124.6
  Overall Size
   291.7*144.9*12.6
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1400:1
  Aspect Ratio
   21:9
  Touch Panel   Without
  Operating Temperature
   -30~85℃



? Product catalog of bar type LCD display.pdf
