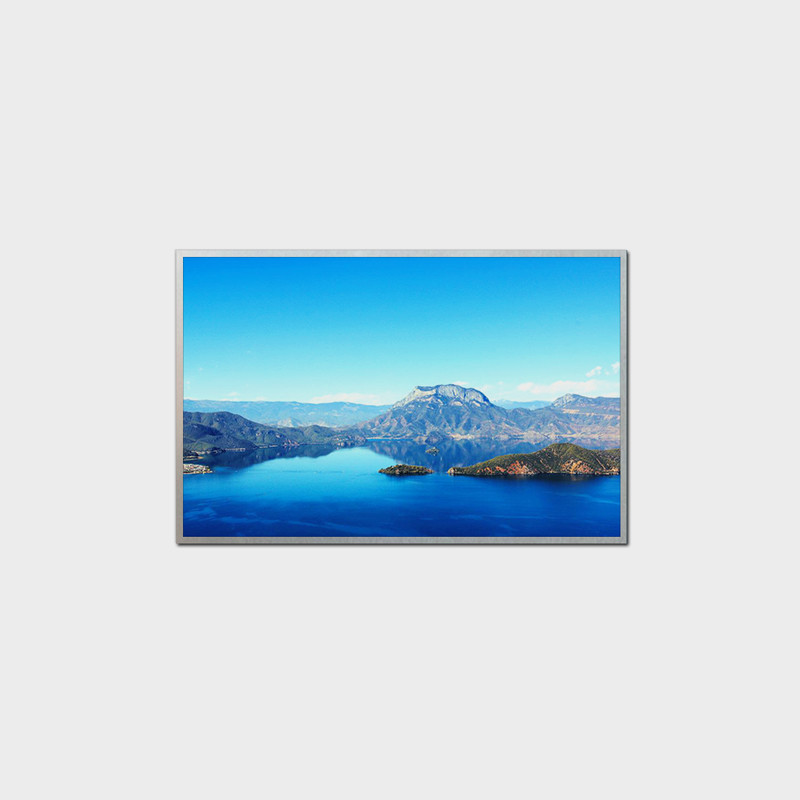

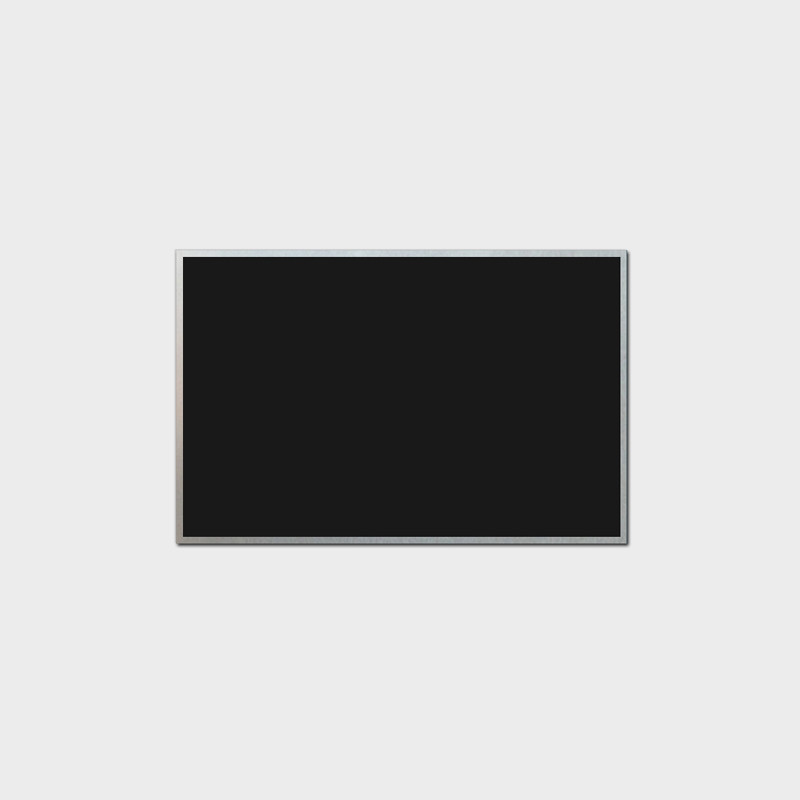

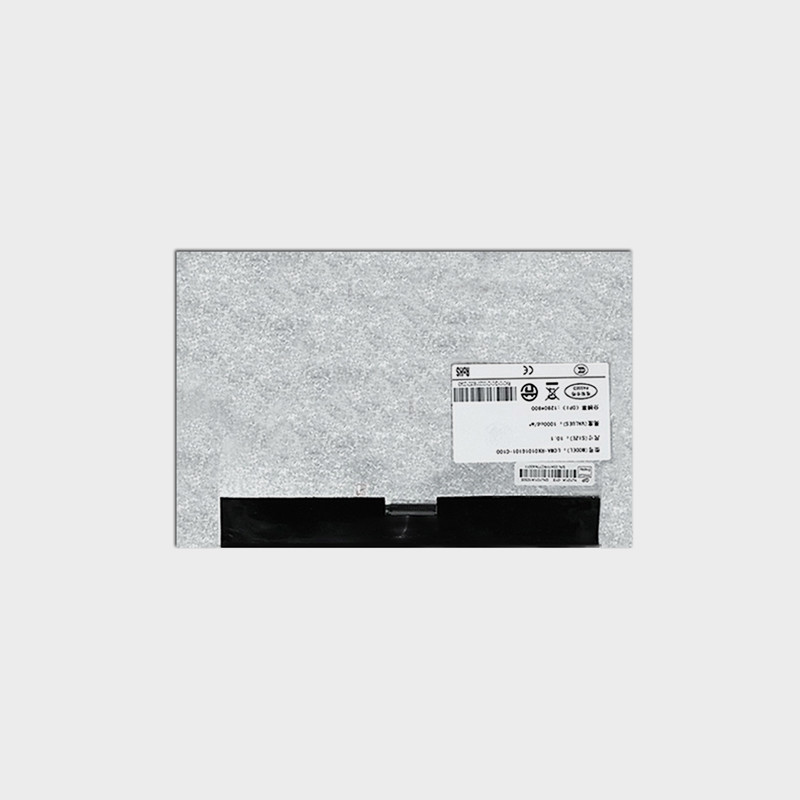

10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0101GI01-C100
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 10.1" Resolution 1280*800
Brightness 1000 (Typ.) Aspect Ratio 16:10
Active Area 216.96*135.6mm (A.A) Outline Dimension 229.46*149.1*7.7mm
Highlight

10.1 inch LCD Display

,

1000nits LCD Display

,

1280*800 LCD Display
Leave a Message
Product Description

10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits

Product Advantage ?

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7.Wide temperature range up to -30°C-80°C.
8.High shock resistance and high stability.

Product Application ?

1.Bus Station Signage Board.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.
10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits 0 10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits 1 10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits 2 10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits 3

Specifications ?

LCMA-RX0101GI01-C100

10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits 4

 Brand  Rogin
 Series  High Brightness LCD Display
 Panel Size(inch)
  10.1
 Model
  LCMA-RX0101GI01-C100
 Brightness
  1000
 Power Consumption (W)
  7.5
 Resolution
  1280*800
 Active Area
  216.96*135.6
 Overall Size
  229.46*149.1*7.7
 Viewing Angle
  85/85/85/85
 Interface Definition
  LVDS (1 ch, 8-bit)
 Backlight Type  WLED
 Contrast Ratio
  800:1
 Aspect Ratio
  16:10
 Touch Panel  Without
 Operating Temperature
  (-20-70)
