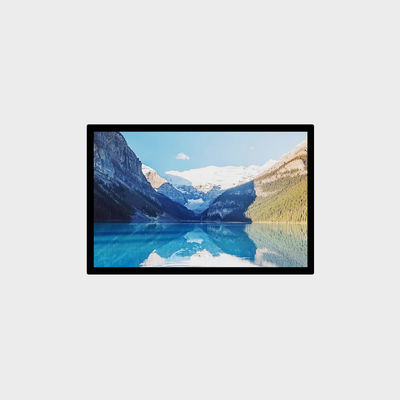

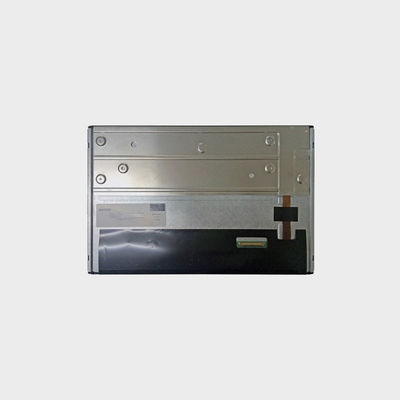

LVDS 1200nits High Brightness LCD Display 1280*800 10.1 Inch LCD Screen Advertising Outdoor

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0101GI02-C120
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 10.1" Resolution 1280*800
Brightness 1200 (Typ.) Aspect Ratio 16:10 (W:H)
Active Area 216.96*135.6mm (A.A) Outline Dimension 230.7*152.55*7mm
Highlight

1200nits High Brightness LCD Display

,

High Brightness LCD Display 1280*800

,

10.1 Inch LCD Screen Advertising Outdoor
Leave a Message
Product Description

10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1200nits

Product Advantage ?

1. Brightness customization 700-5000cd/m2.
2. Outdoor sunlight readable.
3. Low power consumption.
4. High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6. Aluminium backlight structure with good heat dissipation.
7. Wide temperature range up to -30°C-80°C.
8. High shock resistance and high stability.

Product Application ?

1. Bus Station Signage Board.
2. Intelligent Charging Pile.
3. Outdoor Electronic News Reading Board.
4. Intelligent Express Cabinet.
5. Vending Machine.
6. Commercial Advertising Machine.
7. Attractions Information Inquiry Machine.
8. Community Information Board.
LVDS 1200nits High Brightness LCD Display 1280*800 10.1 Inch LCD Screen Advertising Outdoor 0 LVDS 1200nits High Brightness LCD Display 1280*800 10.1 Inch LCD Screen Advertising Outdoor 1 LVDS 1200nits High Brightness LCD Display 1280*800 10.1 Inch LCD Screen Advertising Outdoor 2 LVDS 1200nits High Brightness LCD Display 1280*800 10.1 Inch LCD Screen Advertising Outdoor 3

Specifications ?

LCMA-RX0101GI02-C120

LVDS 1200nits High Brightness LCD Display 1280*800 10.1 Inch LCD Screen Advertising Outdoor 4

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
   10.1
  Model
   LCMA-RX0101GI02-C120
  Brightness
   1200
  Power Consumption (W)
   8.8
  Resolution
  1280*800
  Active Area
   216.96*135.6
  Overall Size
   230.7*152.55*7
  Viewing Angle
   89/89/89/89
  Interface Definition
   LVDS (1 ch, 6/8-bit)
  Backlight Type   WLED
  Contrast Ratio
   800:1
  Aspect Ratio
   16:10
  Touch Panel   Without
  Operating Temperature
   (-20-70)



? Product catalog of high brightness LCD display.pdf...
